Question:

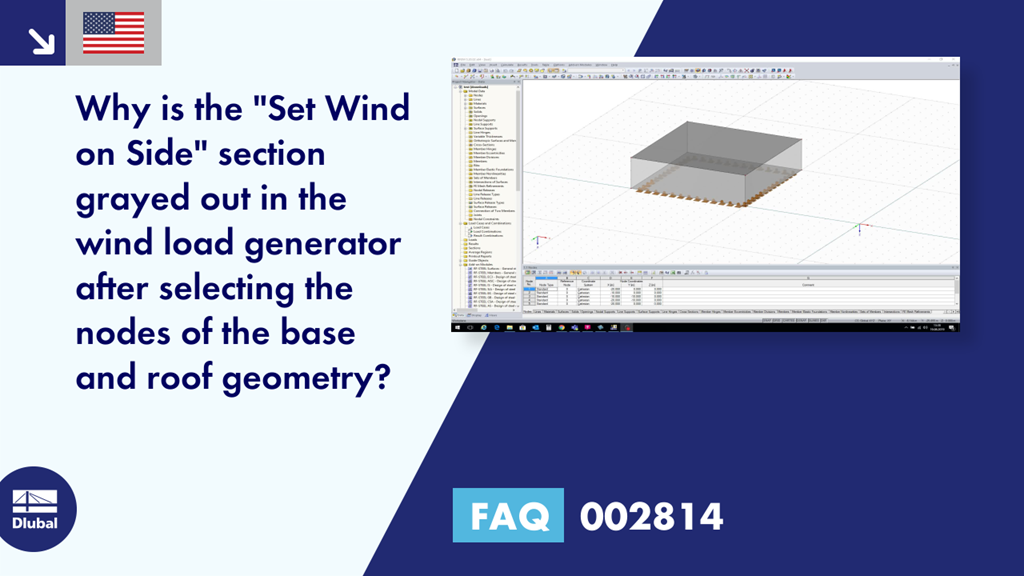

Why is the "Set Wind on Side" section grayed out in the wind load generator after selecting the nodes of the base and roof geometry?
Answer:
When selecting the nodes for the base geometry and the roof geometry, make sure that the nodes have the same arrangement as shown in the image (see Image 01); that is:
Node A via Node I
Node B via Node J
Node C via Node K
Node D via Node L
