[EN] FAQ 003055 |
Is the statically undetermined part of internal forces due to prestressing force considered ...

Question:
Is the statically undetermined part of internal forces due to prestressing force considered in RF‑TENDON?

Answer:

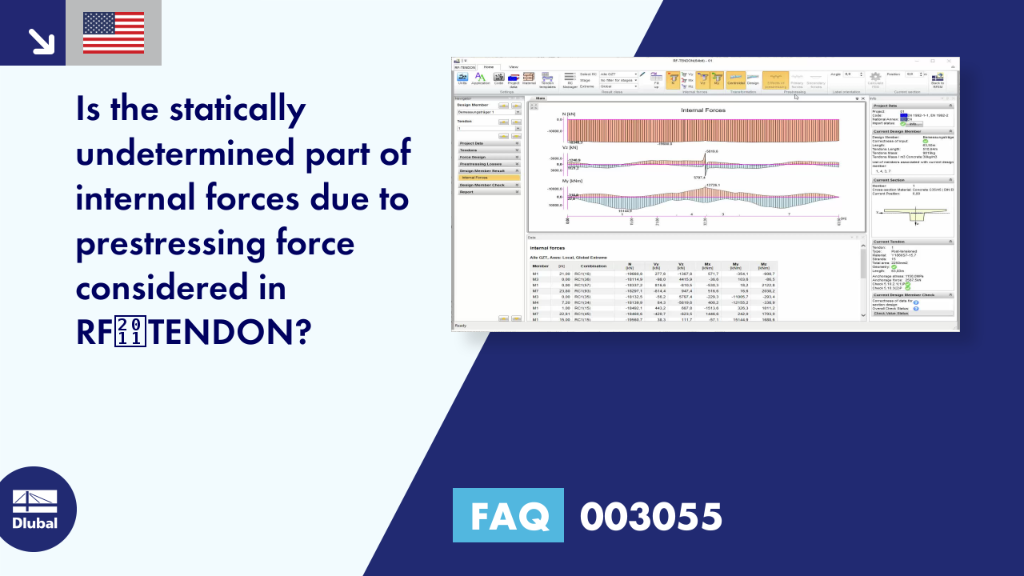

Yes, it is considered. The resulting internal forces due to prestressing can also be displayed accordingly (see Image 01).

Primary Forces: Statically determined part of the internal forces due to prestressing

Secondary Forces: Statically undetermined part of the internal forces due to prestressing

To display the individual parts, you have to create a new result class (RC) where only the prestressing load case is selected.
