Question:

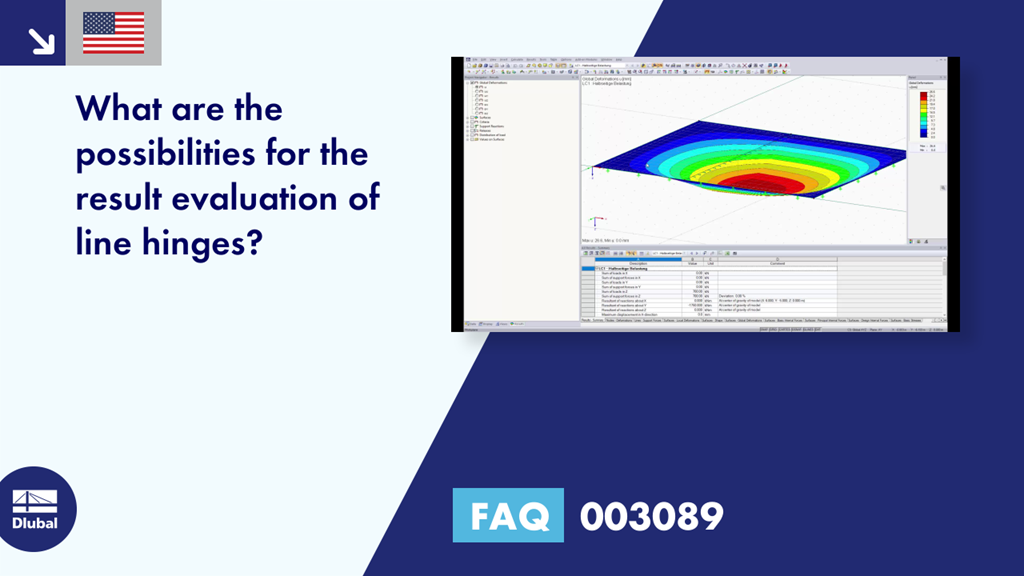

What are the possibilities for the result evaluation of line hinges?
Answer:
There are several possibilities for evaluating the results of line hinges:
Graphical evaluation of the results: Under "Releases" in the Results navigator, you can display various forces and deformations of the line releases in the graphic.
Display of the results in tables: For the tabular evaluation of the results, Table "4.45 Line Hinges - Deformations" and Table "4.46 Line Hinges - Forces" are available.
Evaluation by means of result diagrams: You can use the shortcut menu to view the result diagram of the line hinges.
