What are the possibilities for results evaluation of line hinges?

Answer

There are several possibilities to evaluate the results of line hinges:

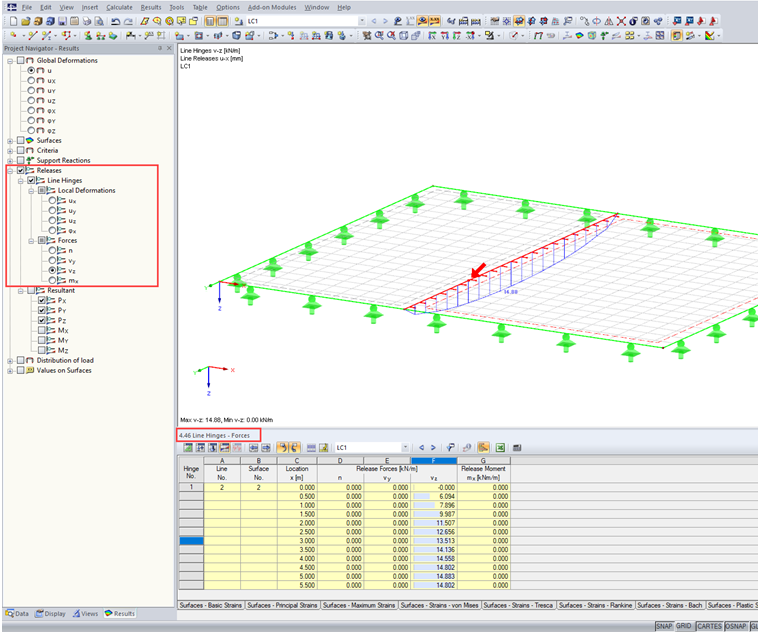

  • Graphical evaluation of results: When opening the menu item “Releases” in the Result Navigator, you can display various forces and deformations of the line releases in the graphic.
  • Tabular output of results: The tables “4.45 Line Hinges - Deformations” and “4.46 Line Hinges - Forces” are available for the table evaluation.
  • Evaluation by Result Diagrams: Use the shortcut menu to view the result diagram of line hinges.

Keywords

Line hinge Results Result diagram Evaluation
