RWIND Simulation | Canopy Roofs According to Eurocode 1 in Wind Channel (Case A)
Video
First Steps with RFEM
Description

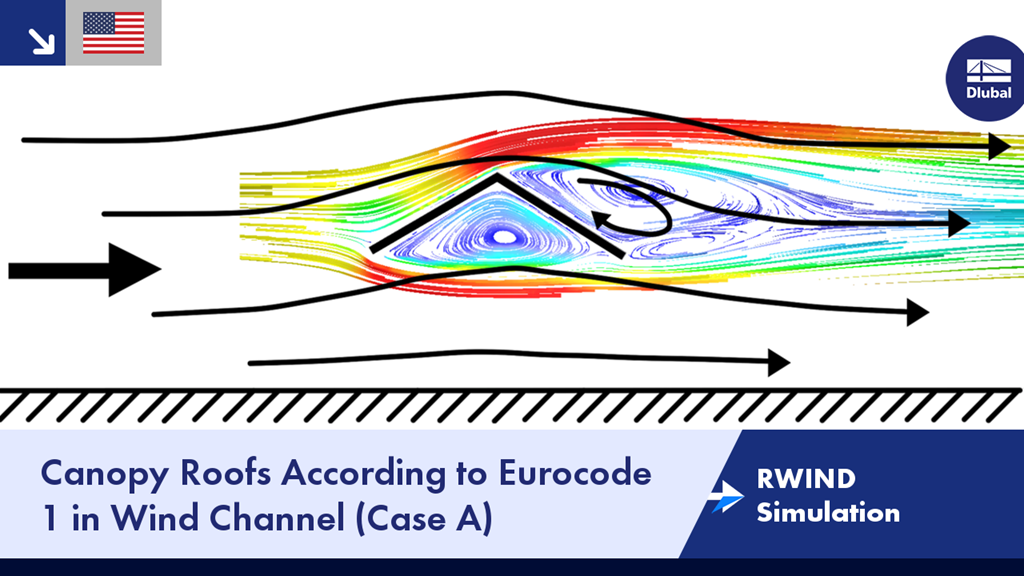

This video shows the realistic "Airflow over canopy roofs" in RWIND Simulation. RWIND Simulation can generate the exact wind flow for the first case in EN 1991-1-4 Section 7.3 Figure 7.15 (empty, free-standing canopy (φ = 0)) and export the resulting loads to RFEM.
RWIND Simulation is a stand-alone program for CFD simulation of wind flows around buildings or any other objects and generating wind loads, i.e. forces acting on these objects. Wind pressure and suction forces can be imported as loads into the structural analysis software RFEM or RSTAB.
Keywords
RWIND Simulation Calculating Wind Loads CFD Wind Analysis Wind Speed Wind Tunnel of a Building Canopy Roof Eurocode 1 EN 1991-1-4 Figure 7.15 Airflow over canopy roofs Wind simulation Wind Tunnel Wind Stream Wind flow analysis Flow analysis Numerical wind tunnel OpenFOAM Shrink wrap Wind Load Generation Wind simulation software Digital wind tunnel CFD wind simulation program Determination of wind currents Wind effects on the building
