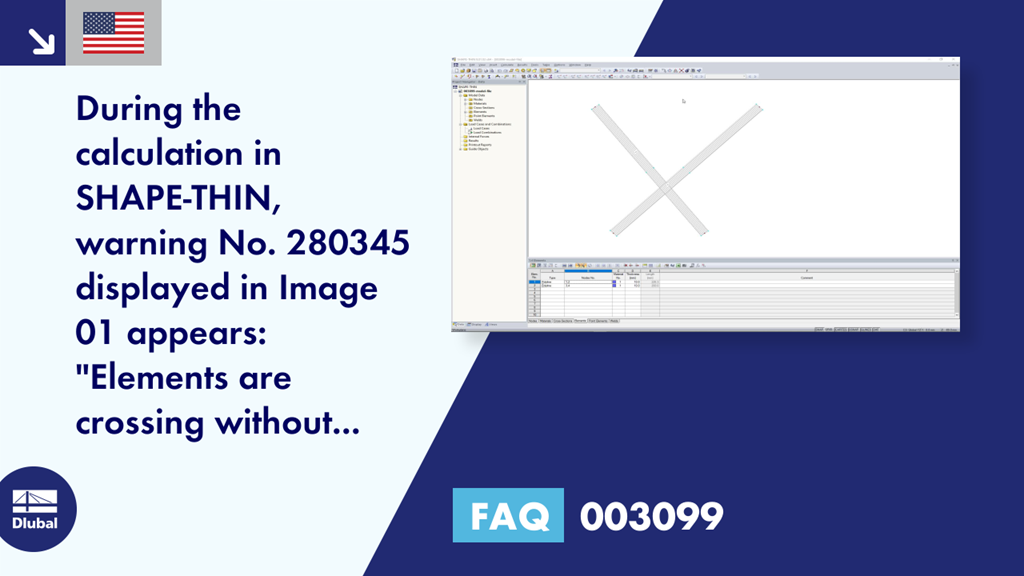

FAQ 003099 | During the calculation in SHAPE‑THIN, the warning No. 280345 displayed in Figure 01 appears: "Elements are crossing without connection. Do you wish to interrupt the plausibility check?” What can I do?
First Steps with RFEM
QuestionDuring the calculation in SHAPE‑THIN, the warning No. 280345 displayed in Figure 01 appears: "Elements are crossing without connection. Do you wish to interrupt the plausibility check?” What can I do?
The elements can be connected by using the "Connect Lines/Members" tool. You can access this function by using the Tools → Connect Elements menu or the corresponding button in the toolbar. In the work window, simply draw a window over the area where the elements are to be connected (Figure 2). It is not necessary to completely capture the objects.
