Online Training | RFEM for Students
Video
First Steps with RFEM
Description
This free online training for students about RFEM shows important features and modeling options by using practical examples.
This recording was created on Wednesday, Jul 22, 2020.
Content:
00:00:00 Greeting
00:03:15 Basic principles of FEA
00:10:19 Introduction to RFEM

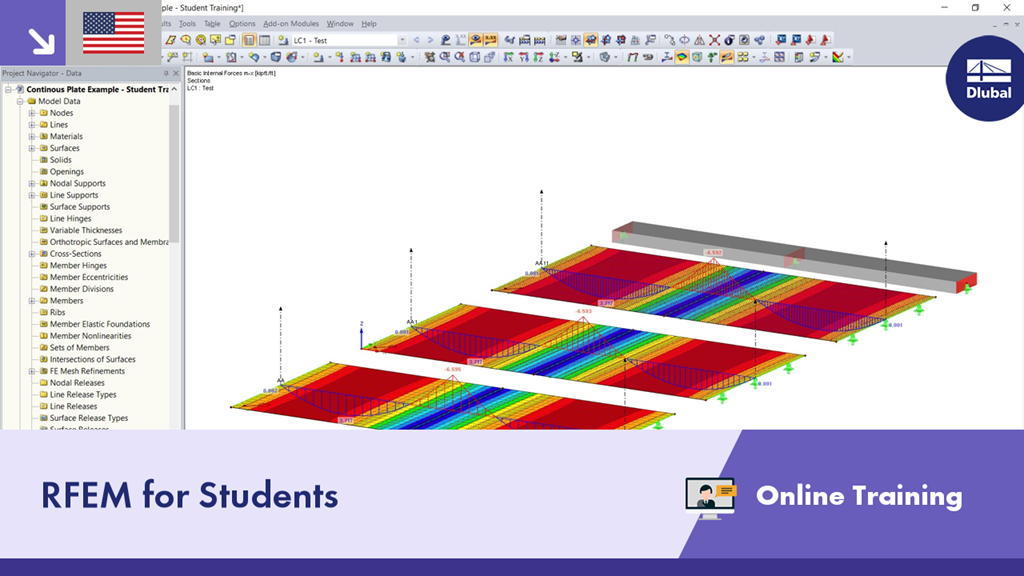

00:24:46 Introduction example: continuous plate
01:29:59 Plate theory
01:52:48 Stability analysis: Euler Case 1
02:31:58 Moment frame
02:40:56 Concrete model
02:52:54 Questions and discussion
Keywords
Continuous plate Continuous beam Stability Student training Online
