Question:

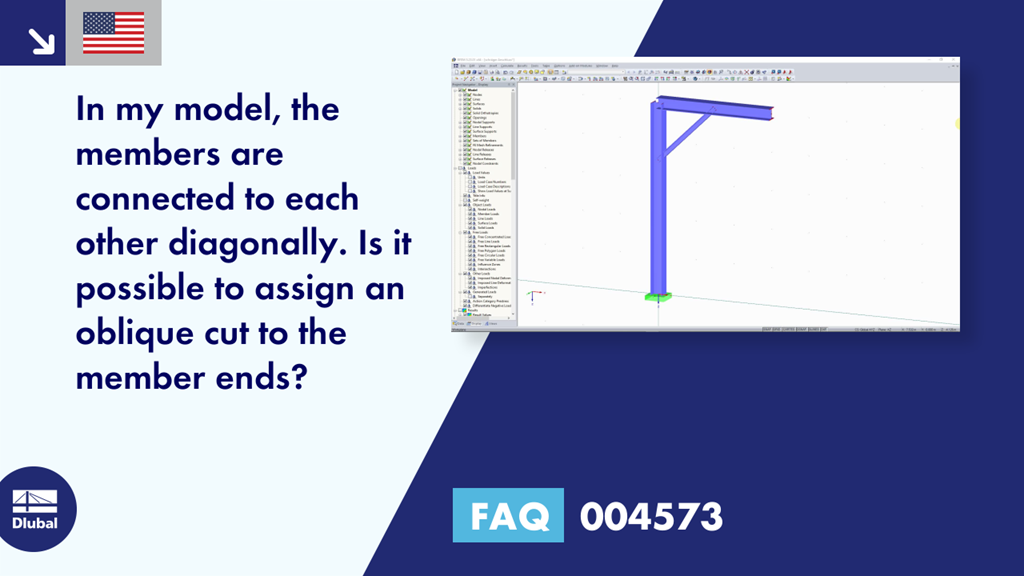

In my model, the members are connected to each other diagonally. Is it possible to assign an oblique cut to the member ends?
Answer:
No, it is not possible. Members are nothing more than lines with a stiffness assigned to them using the cross-section definition. Therefore, the member is always "cut" perpendicularly to the member axis in the rendering.
