In my model, members are connected diagonally to each other. Can I assign an oblique cut to the member ends?

Answer

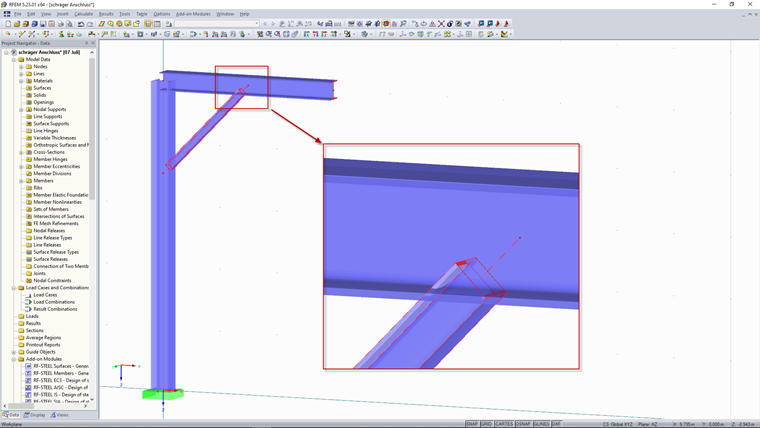

No, this is not possible. Members are nothing more than lines that are assigned a stiffness via the cross-section definition. Therefore, the member is always "cut off" perpendicular to the member axis in the rendering

Keywords

Inclined member connection Inclined member end Member End Member start
