If you want to remove redundant nodes but keep connected objects, you can right-click the relevant node and select the "Delete Nodes" and "Merge Connected Members" options. In addition to members, you can merge lines in RFEM.

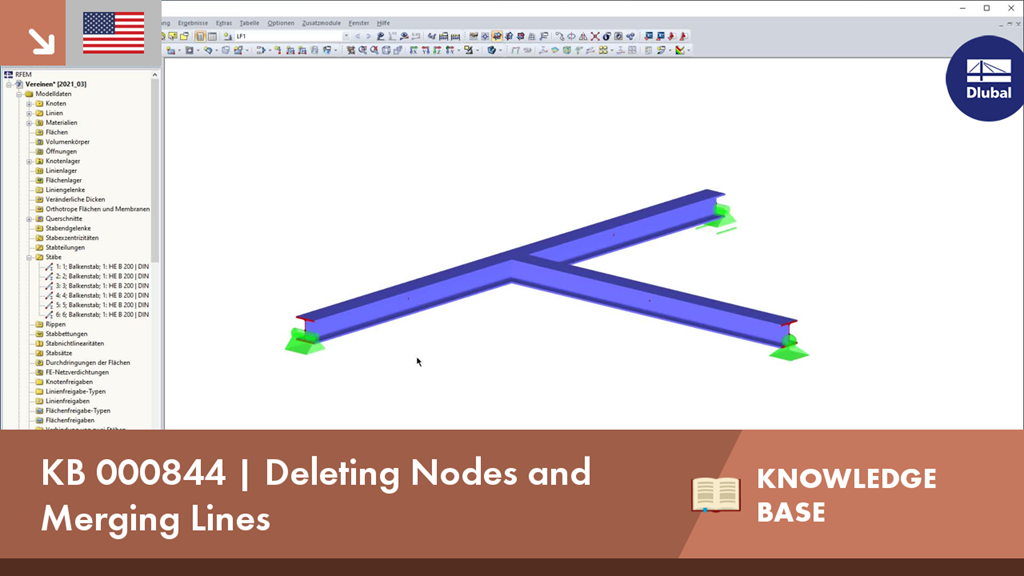

KB 000844 | Deleting Nodes and Merging Lines
