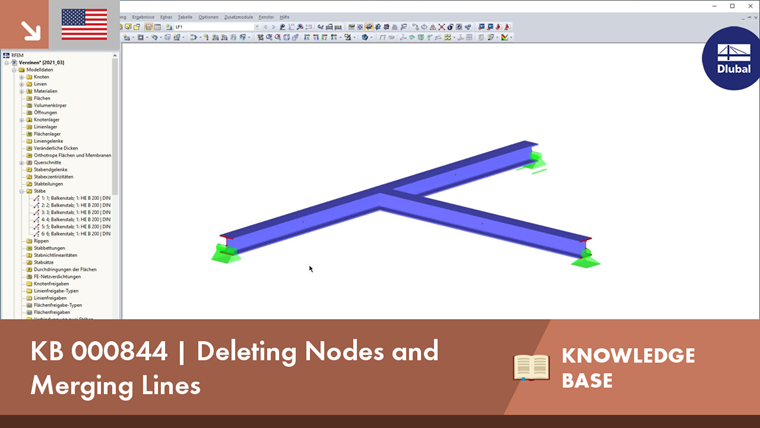

Deleting Nodes and Merging Lines

Tips & Tricks

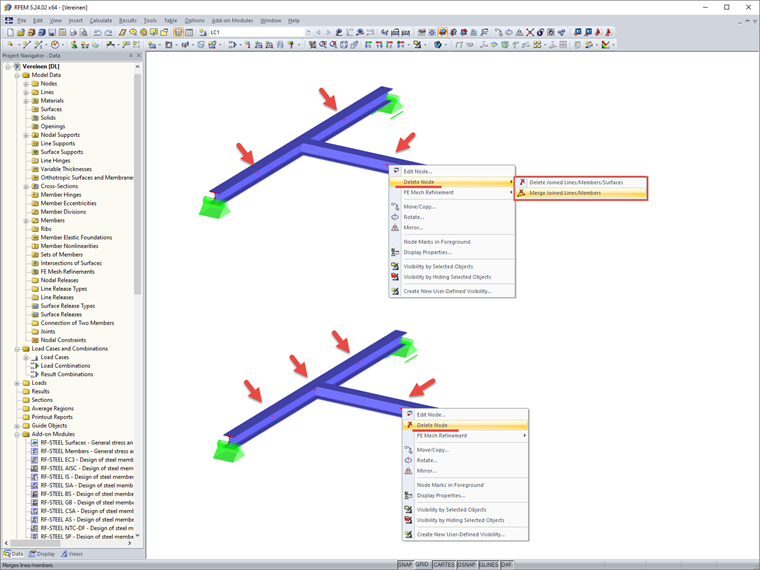

If you want to remove superfluous nodes but keep connecting objects, you can do this in RSTAB by right‑clicking the relevant node, then on the context menu, point to ‘Delete Nodes’ and select ‘Merge Joined Members’. In addition to members, you can also merge lines in RFEM.
