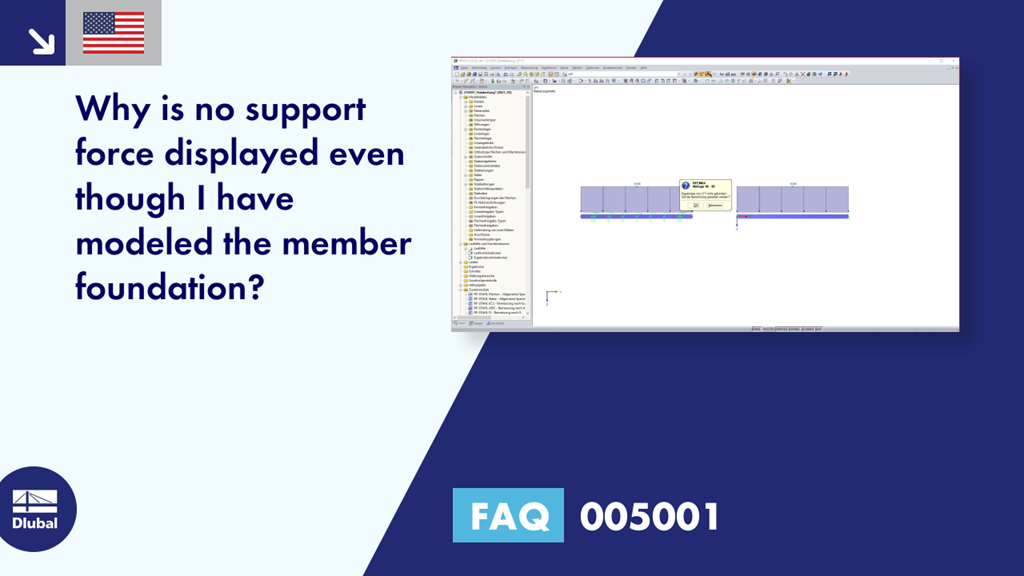

Question: Why is no support force displayed even though I have modeled the member foundation?
Answer:
If the model contains members with elastic foundations, the contact forces and contact moments are displayed numerically in Table 4.7. To control the graphical display of results, select the Members check box in the Results navigator.
