Question:
Why are certain model generators only displayed as inactive/grayed?
Answer:
To use a model generator, you may have to adjust the model type within the general data. For example, a 2D truss requires either the "2D - in XZ" or "3D" model type.

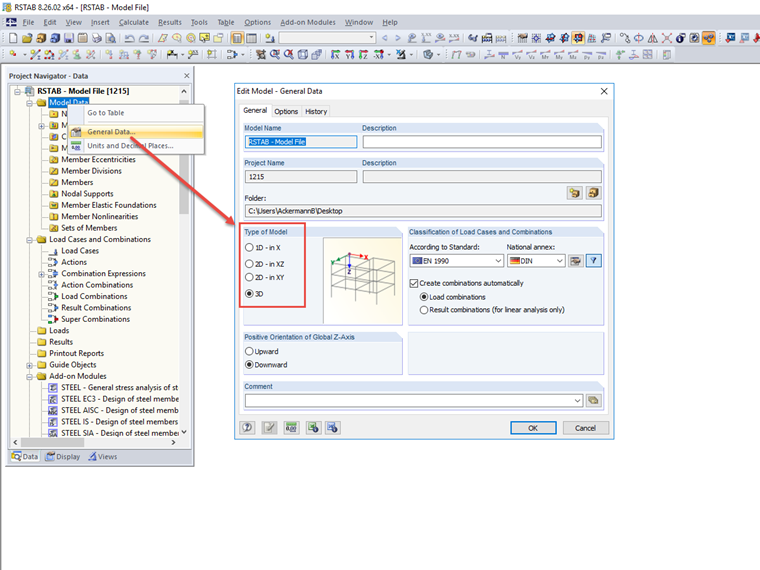

You can open the "Edit Model General Data" dialog box as follows:
Project Navigator - Data
Right-click Model Data
General Data
Type of Model, see the image
