Question:
Why is it not possible to create surfaces in my RFEM model?
Answer:

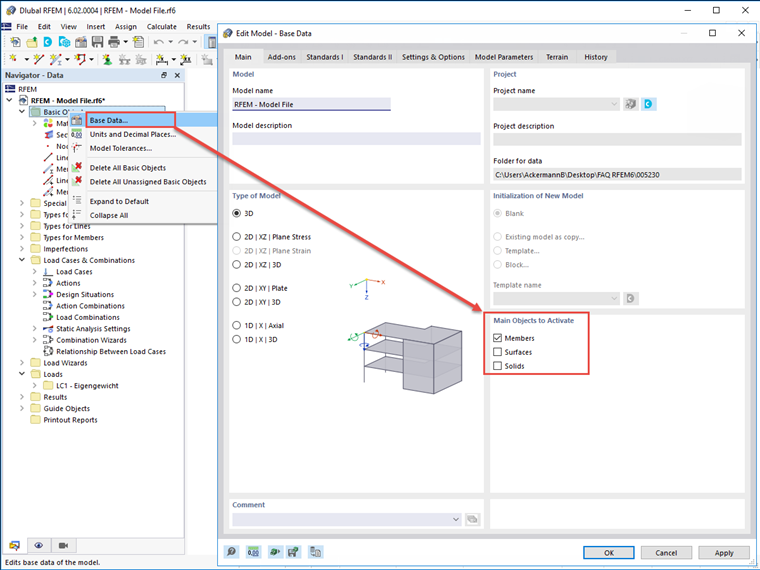

The surfaces are probably deactivated under "Main Objects to Activate" in the Base Data of the model; see the image.
