Question:

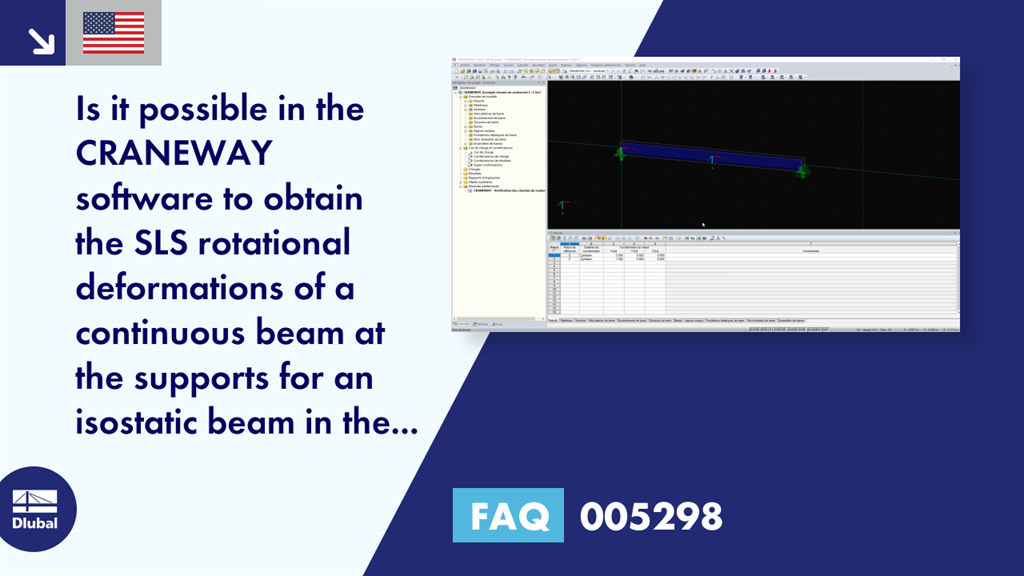

Is it possible in the CRANEWAY software to obtain the SLS rotational deformations of a continuous beam at the supports for an isostatic beam in the web plane?
Answer:
Yes, the rotational deformations are available in CRANEWAY. For this, click "Deformation Analysis" in the list of results. You can then select the output mode "By x-Location" and select the desired support point. The rotational deformation values can be displayed in the Details table.
