Answer:

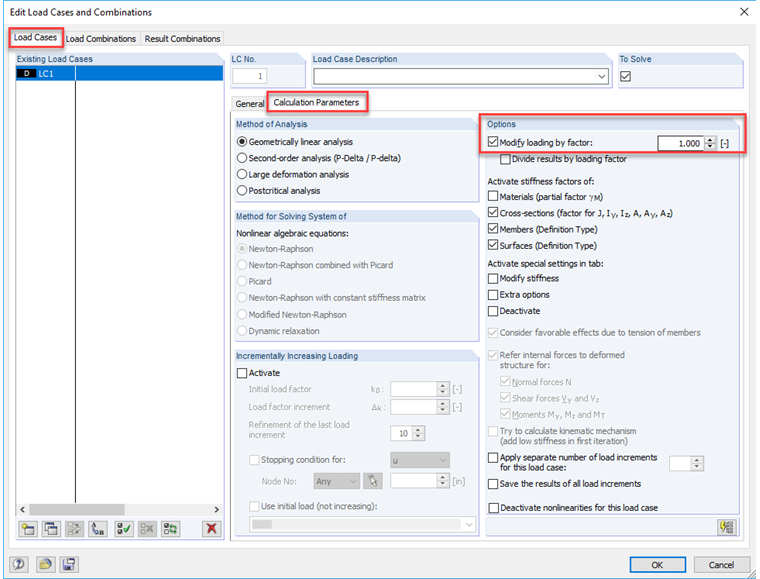

The load case factor is always considered in the calculation, and thus also in load and result combinations.

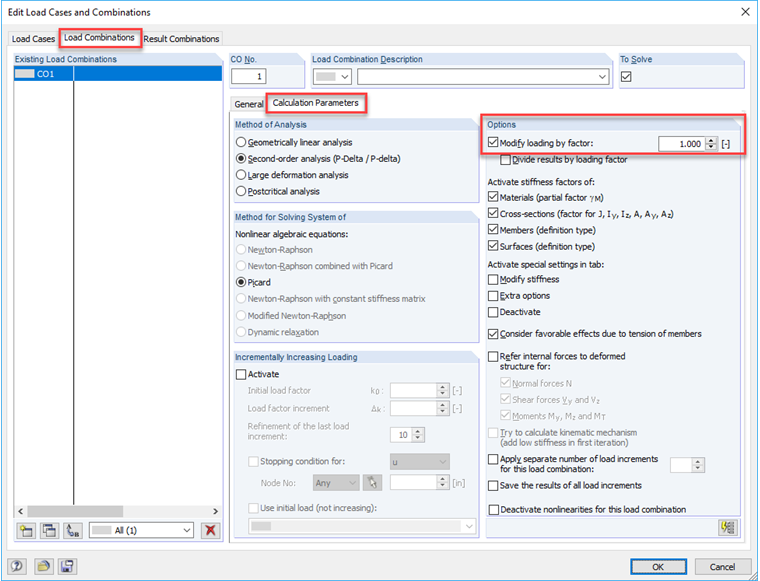

The same applies for the factor of load combinations.
Question
RFEM/RSTAB provides the option to multiply the loading of a load case by a factor. Is this load case factor always considered also in load combinations? Or is it only used in individual load cases?
