FAQ 001323 EN

1 December 2017

Modeling | Structure SHAPE-MASSIVE SHAPE-THIN

How can I specify the reference material in composite cross-sections?

Answer

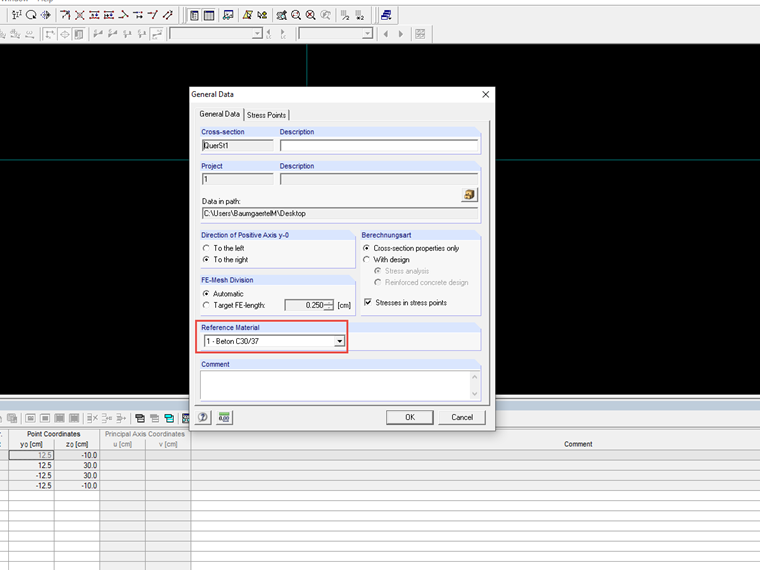

If there are different materials, it is necessary to specify a reference material. Then the ideal cross-section properties and cross-section distributions are determined relative to the reference material. You can select the reference material directions in the "General Data" tab.
