FAQ 002411 EN

14 February 2019

Markus Baumgärtel Results RFEM

How can I display the result values for alpha-m (trajectories) in a clearer way?

Answer

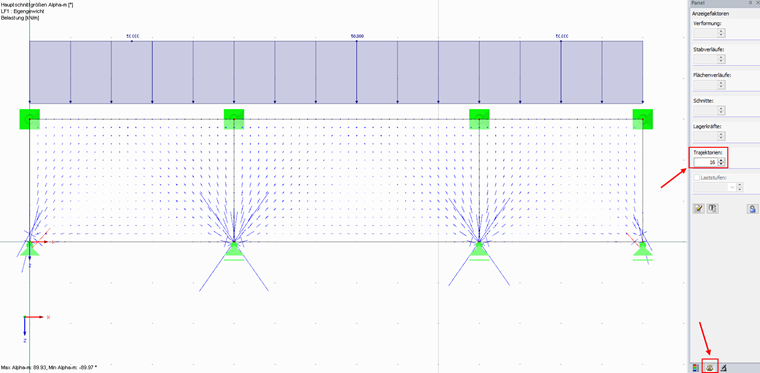

You can adjust this in the second tab of the panel: set a suitable display factor for displaying trajectories αm (see the figure).

Keywords

alpha-m trajectory display factors

Reference
