FAQ 002466 EN

21 February 2019

Markus Baumgärtel Results RFEM

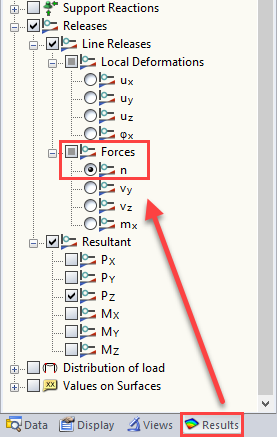

I have released a line in a surface model. In the Results navigator, there is the description 'Releases → Line release → Forces → n'. What does 'n' mean?

Answer

This is the axial force of the surface, which is denoted by a small n.

This specification is useful, for example, if a spring has been defined in x for the type of line release. By using n, you can then display the force of the spring that is transferred.

Keywords

line release results line release forces line release
