Answer:

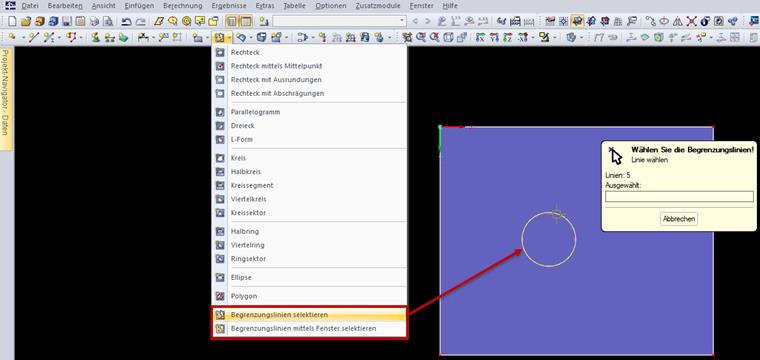

The "Select Boundary Lines" or "Select Boundary Lines via Window" button for openings allows you to graphically select lines that have already been defined (Image 01). The lines must form a closed continuous line.
Question
I have created the lines for an opening. How can I generate the opening?
