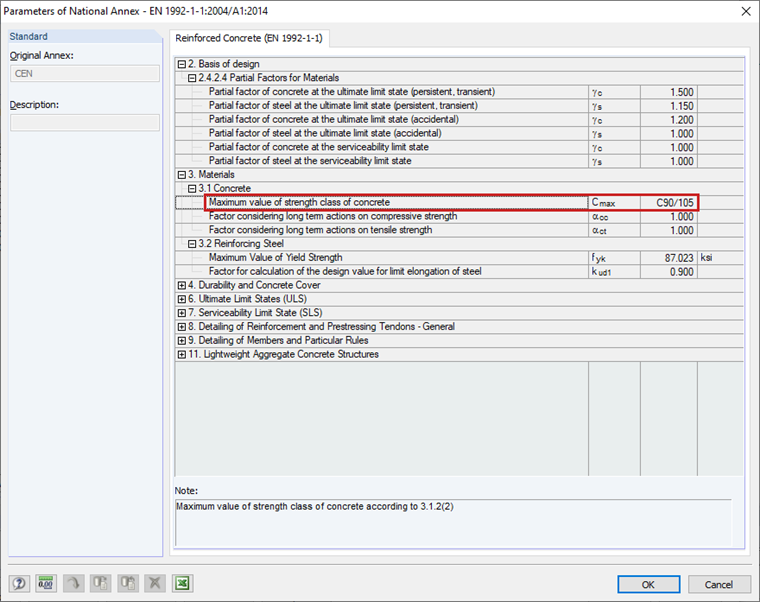

This is currently not possible in the design modules. Concrete strength classes greater than C 100/115 are not regulated in the standards and require approval in individual cases. Ultra-high performance concrete usually behaves differently, and thus cannot be designed according to the current standard methods.
