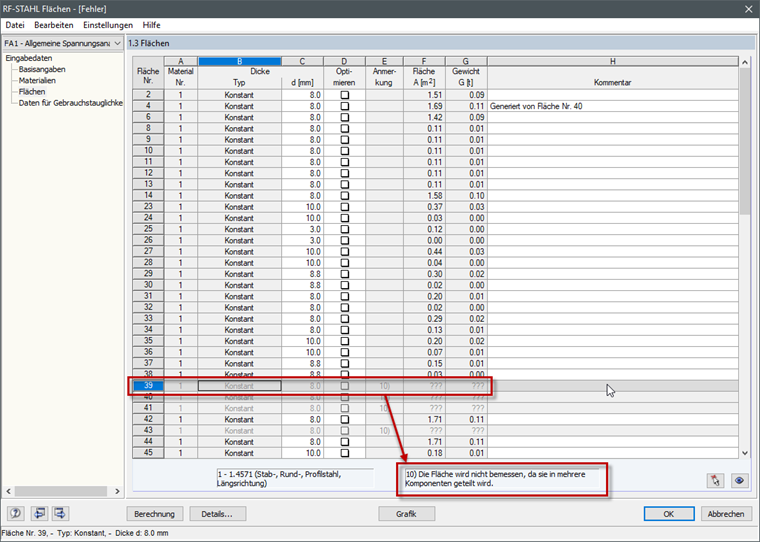

We get an indication that the surface is not designed, because it is divided into several components. Why is that?


Since the surface was decomposed into components when creating an intersection, the components are now designed. The original surface is not considered in the design.


Components Intersection Surface design
