FAQ 002908 EN 12 April 2019

Markus Baumgärtel Add-on Modules RF-LIMITS

Can I enter maximum internal forces for line releases in RF limits?

Answer

No, that's not possible yet. However, there is also the possibility of evaluating the line release directly via RFEM. Although no utilization is indicated with this method, it is suitable for assessing the transmitted forces.

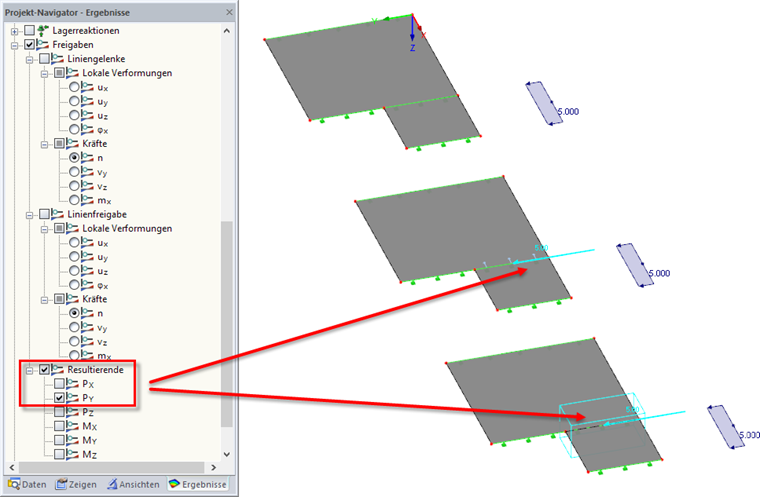

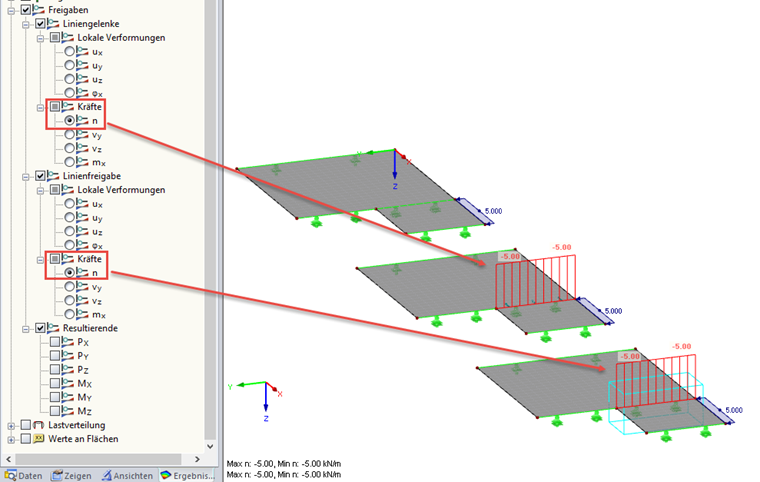

The resultants for the results of line joints and line releases can be displayed via the results navigator under the entry "Approvals". In this case, a distance-related evaluation (see Fig. 01) or the consideration of the total value (see Fig. 02) is possible.

Keywords

Evaluation line release Utilization line release
