Answer:

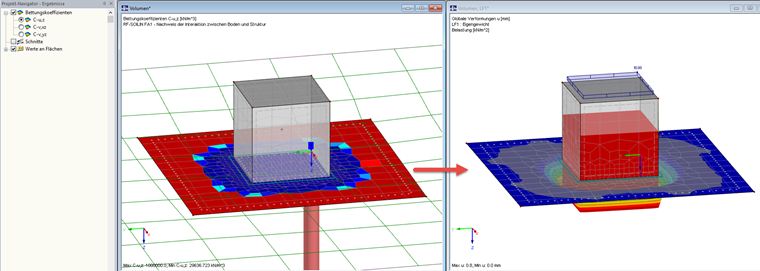

Yes, the calculation also works with solids. It is only important for the calculation that the solid with one surface side (base plate) has to be bedded. This means that supporting the solids with only line supports is not possible for calculation using RF‑SOILIN.
Question
Does a calculation in RF‑SOILIN also work with solids?
