I have to perform a recalculation of a foundation in the existing structure and looking for design according to DIN 1045 or DIN 1054 for this. In RF‑/FOUNDATION Pro, there is only the Eurocode available to me. Do you have any other module for the foundation design?

Answer

As you have correctly mentioned, there is the design according to EN 1992‑1‑1 or EN 1997‑1 available in RF‑/FOUNDATION Pro.

The reinforced concrete design according to DIN 1045‑1 or DIN 1045, or Geotechnical designs according to DIN 1054 can be performed in the predecessor module RF‑/FOUNDATION.

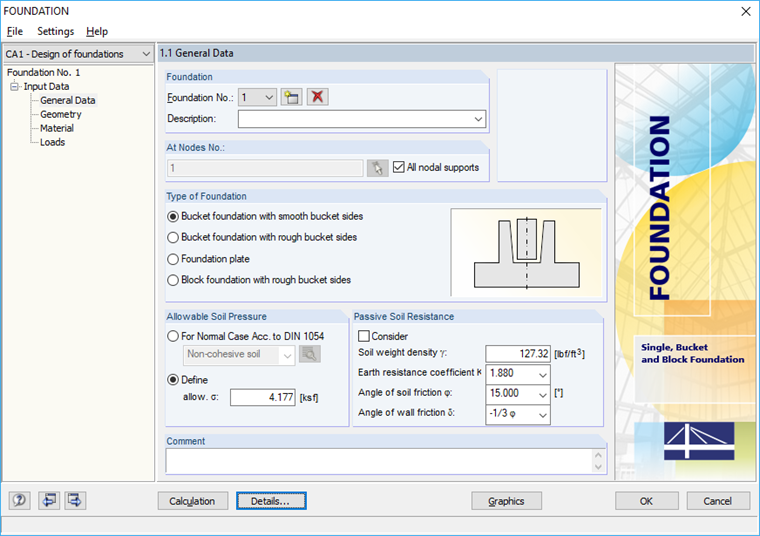

You can find the RF‑/FOUNDATION add‑on module in the Data navigator under the add-on modules and in the menu under 'Add-on Modules' → 'Foundations'.

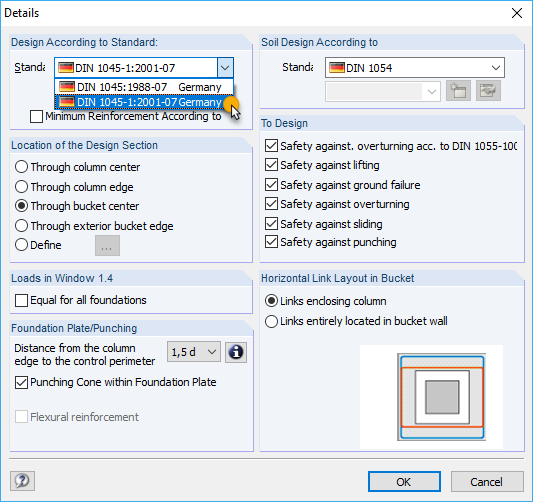

In the detailed settings (see Figure 02), you can specify the standard according to which the reinforced concrete design should be performed.
