Why is the strength always reduced by the kmod value of 0.6 during the calculation in the RF‑LAMINATE add‑on module, although I have load combinations with variable loads?

Answer

In RF-LAMINATE, it depends whether you design a result combination or the load combinations included in it.

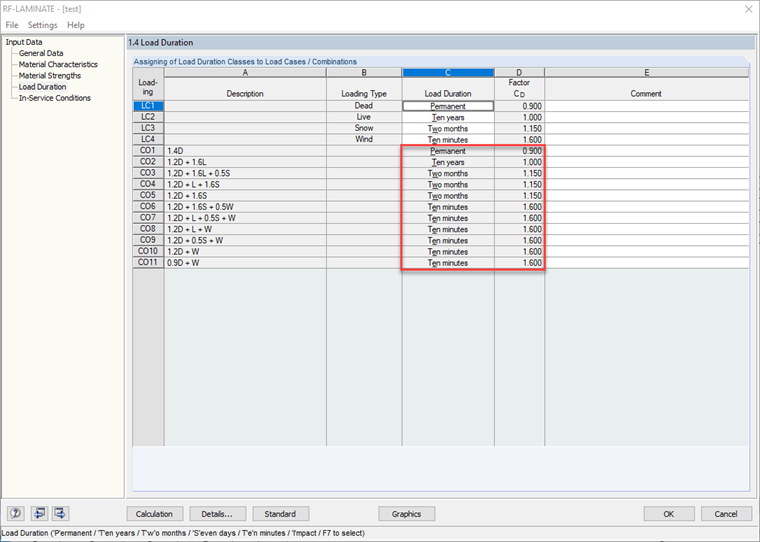

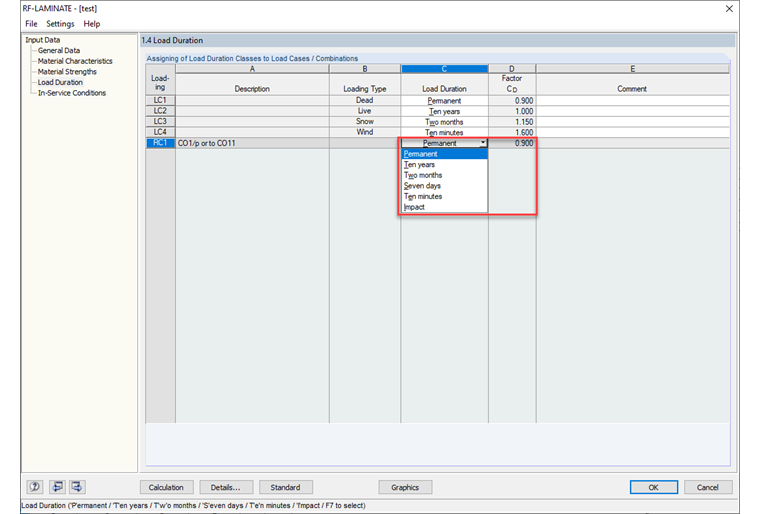

If you select load combinations for the design in General Data, the shortest load duration of the included load cases will be applied. If you select the corresponding result combination for the design, the result combination envelope will be calculated, but not the included load combinations. Since it is not clear for the envelope, from which load cases the maximum or the minimum value results, the "permanent" load duration will be used for this result combination on the safe side for the design. However, this entry can be changed in Window 1.4.

When designing the result combination, the advantage is the faster calculation and it is especially advantageous for a preliminary design of a very large structure. If the governing load cases are known, it is recommended to modify the load duration class in Window 1.4.

To perform a more precise calculation, please select the corresponding load combination for the design in General Data.
