FAQ 003190 EN

19 June 2019

Markus Baumgärtel Modeling | Structure RFEM RSTAB

For a better graphical representation, it is necessary to mirror a line support. Is this possible?

Answer

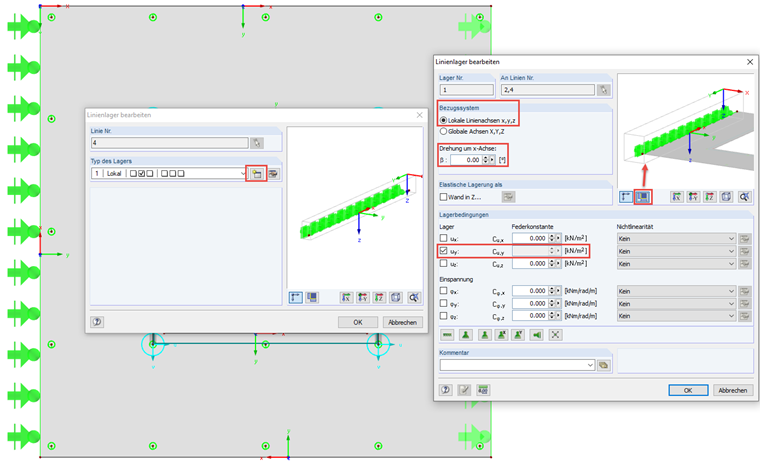

The easiest way to proceed is to create a new line support for the respective situation. This can be related, for example, to the local axis system and also be rotated, if necessary.

Keywords

Line support Rotation Line axis Reference system
