Why do I receive such high contact stresses at the foundation edges of my floor slab?

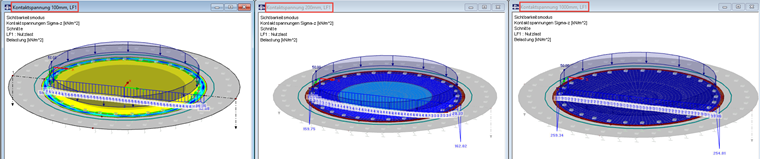

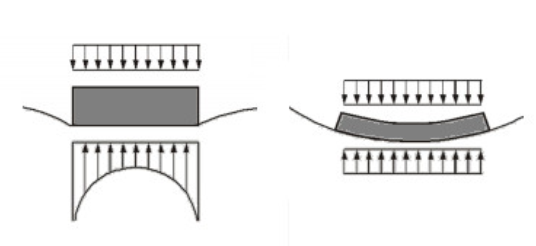

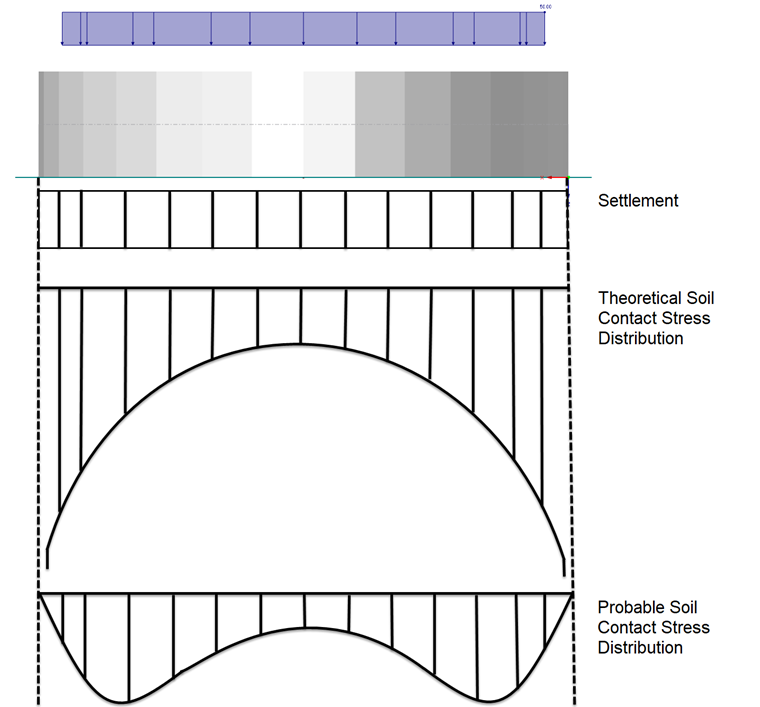

Depending on how rigid a foundation body is, the distribution of overloading pressure under this structural component changes as well. In case of non-prestressed foundation bodies that are loaded by a uniform surface load, it is generally assumed that the overloading pressure distribution is a mirror image of the load. The plate forms a subsidence basin. However, the more rigid the plate becomes, the more the contact stress rises towards the edge (theoretically limitless).


Distribution of overloading pressure Overloading pressure Contact stress Plate edge
