What do the nine points refer to when considering any cross-section (Z-Section) in the RF-/STEEL Warping Torsion?

Answer

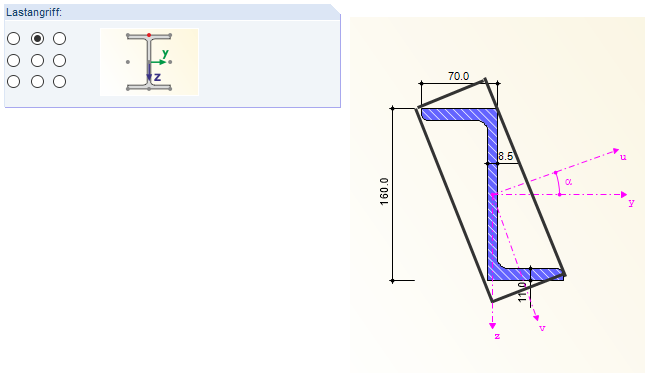

The setting of the load application in the Details refers to the principal axes of the respective cross-section. For a Z-Profile as an example, a box with the nine edge nodes is put around the profile. The load application is then always related to the rotated principal axis angle and the corresponding eccentricities.

Keywords

Load application Eccentricity Warping torsion
