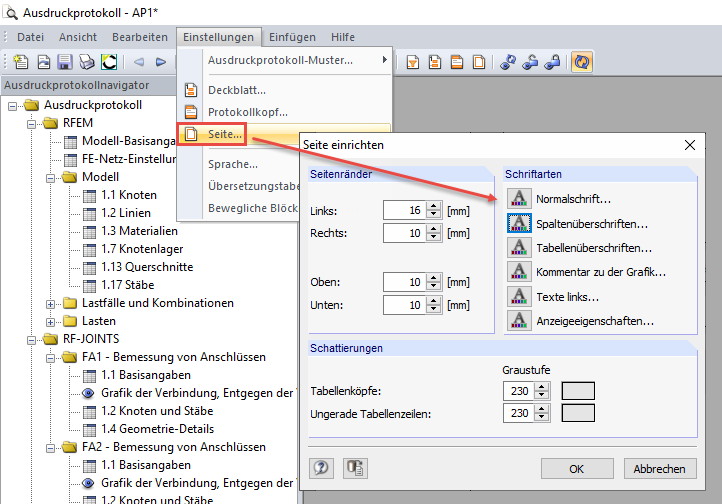

All font sizes and fonts displayed in the printout report can be defined in the "Page Setup" dialog box.
The default fonts of normal scripts and column titles are relatively small. However, you should be careful when changing the default Arial font sizes: With larger fonts, entries do not always fit into the designated columns and may be cropped.
