Is it possible to import pipes from AutoCAD Plant 3D to RF‑PIPING Design?

Answer

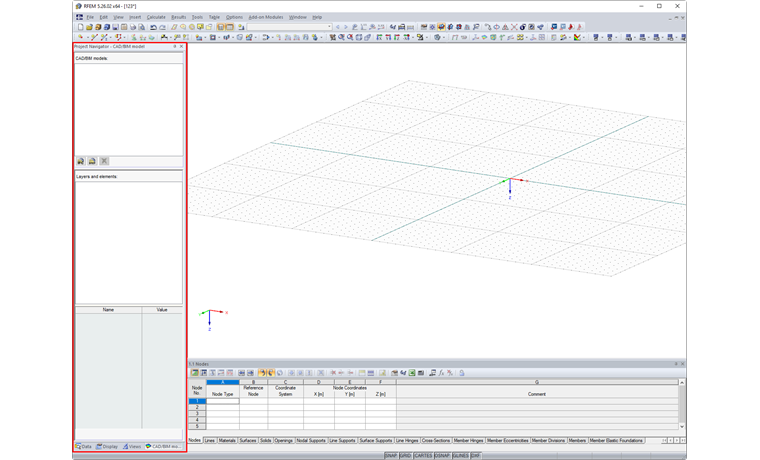

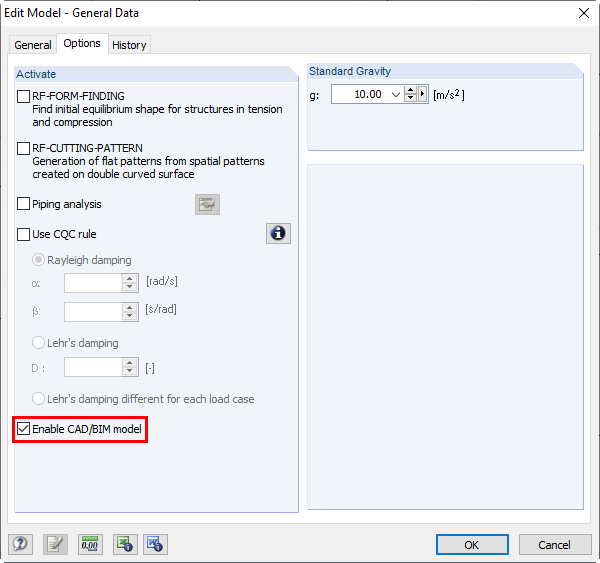

The files from AutoCAD Plant 3D can be transferred to RFEM by using the CAD/BIM model feature. There are the formats STEP (*.stp, *.step), IGES (*.igs, *.iges), or *ifc available; the model is loaded as a base to create the pipe in RF‑PIPING Design.

Keywords

BIM CAD/BIM Model RF-PIPING Design AutoCAD Plant 3D
