Why is the ground failure analysis not performed in RF‑/FOUNDATION Pro?

Answer

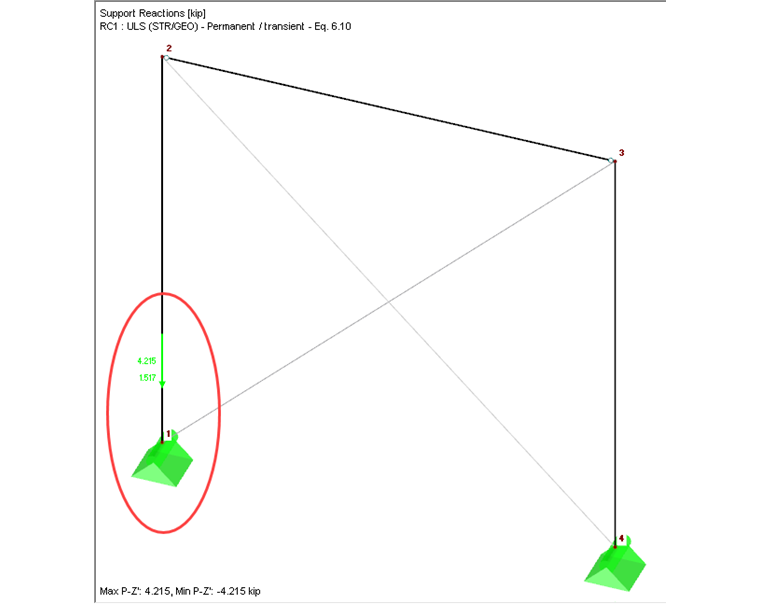

Please check the load.
The foundation base is probably not overpressed due to the lifting load.

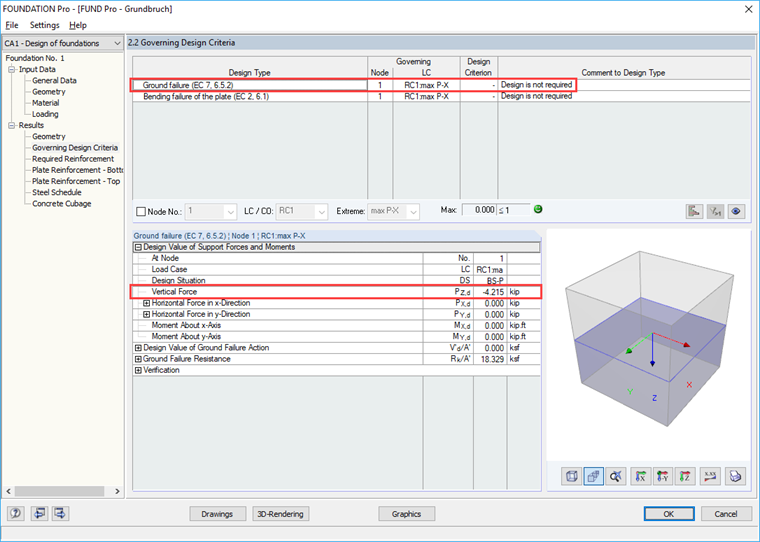

In this case, RF-/FOUNDATION Pro displays the design criterion of '-' with the note 'Design not required'.

Keywords

Foundation Ground failure Support Support force Lifting Buoyancy Design Ground failure resistance Soil contact stress
