How is the direction of laying the reinforcement defined in RF-CONCRETE Surfaces?

Answer

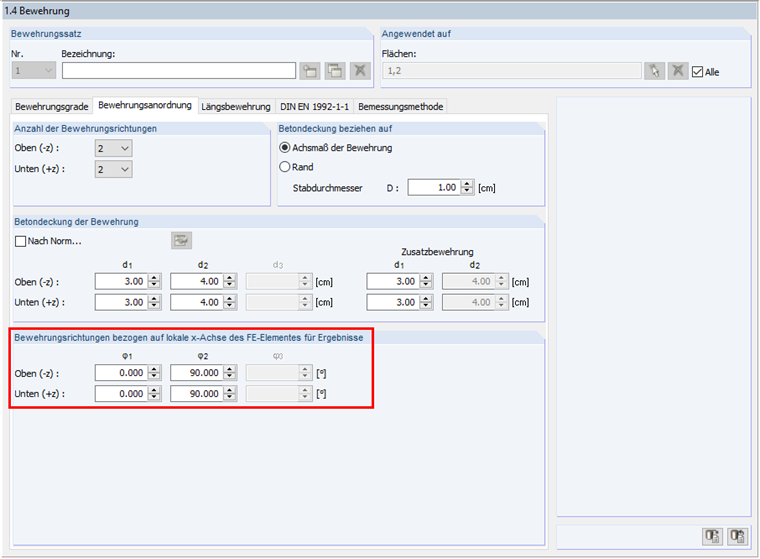

The direction of the longitudinal reinforcement is defined in the dialog box '1.4 Reinforcement' in the 'Reinforcement Layout' tab.

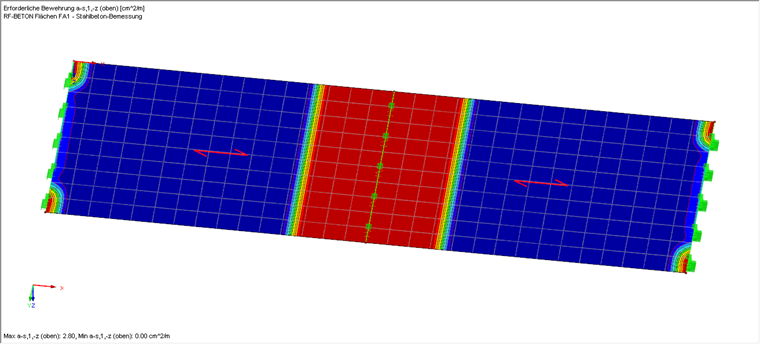

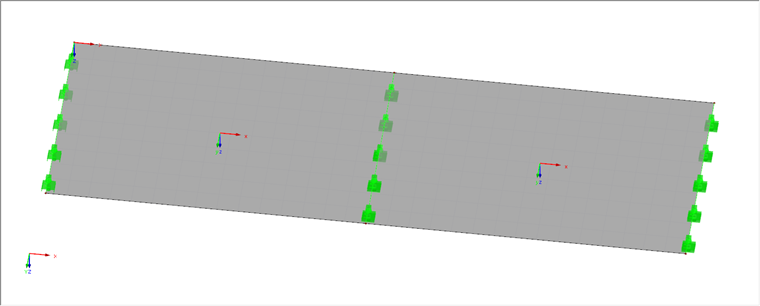

Here the reinforcement direction phi-1 corresponds to the direction of the local axis x of the FE element (for results) by default. In the default setting, the direction of the local axis x of the FE element or of the surface is identical for the input as well as for the results.



Keywords

Reinforcement Reinforcement direction Direction of laying Position Longitudinal reinforcement
