Answer:

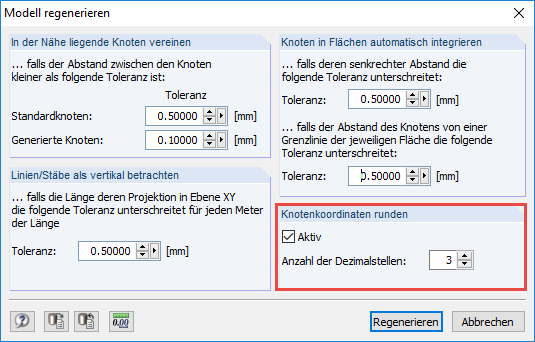

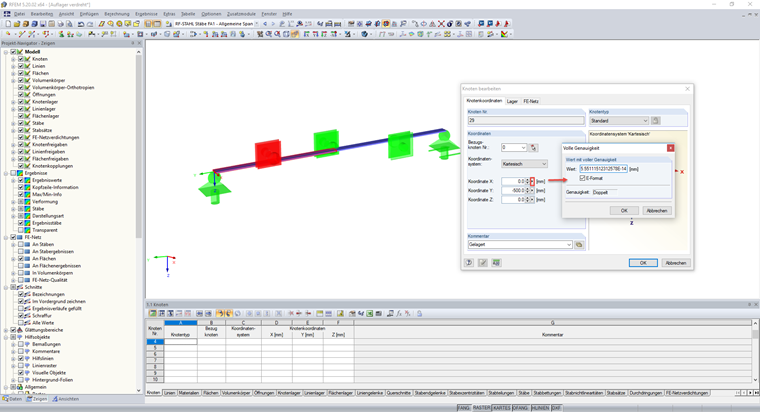

The discrepancy is probably caused by rounding differences of the nodes. Please adjust the X‑coordinates of the nodes accordingly.The "Regenerate Model" feature could also be helpful; you can find it in Tools.
Question

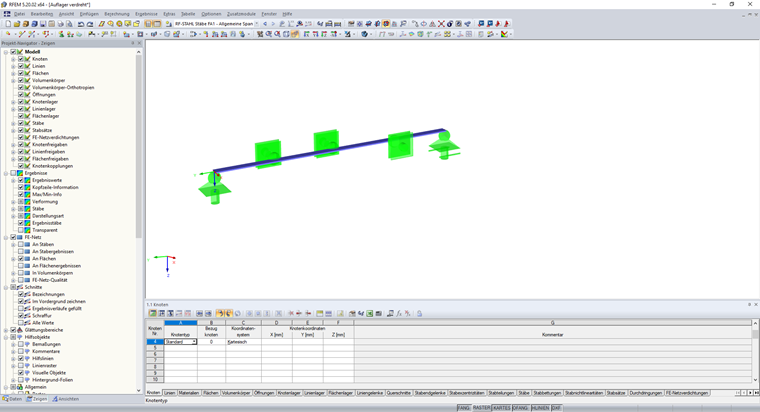

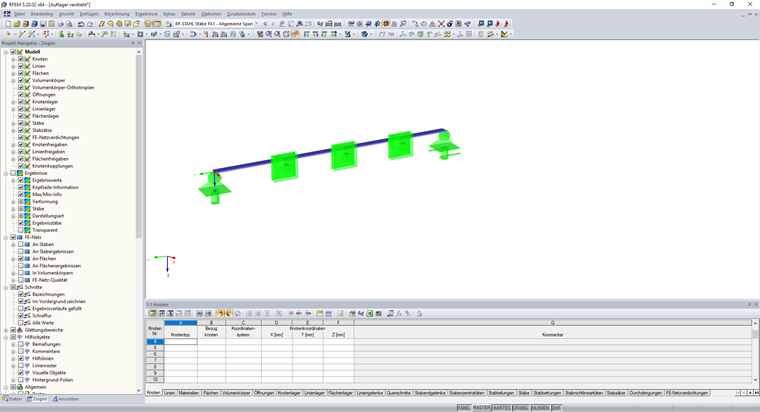

Some of my supports are rotated by 180 degrees. How can I rotate the view of a nodal support?
