Answer:

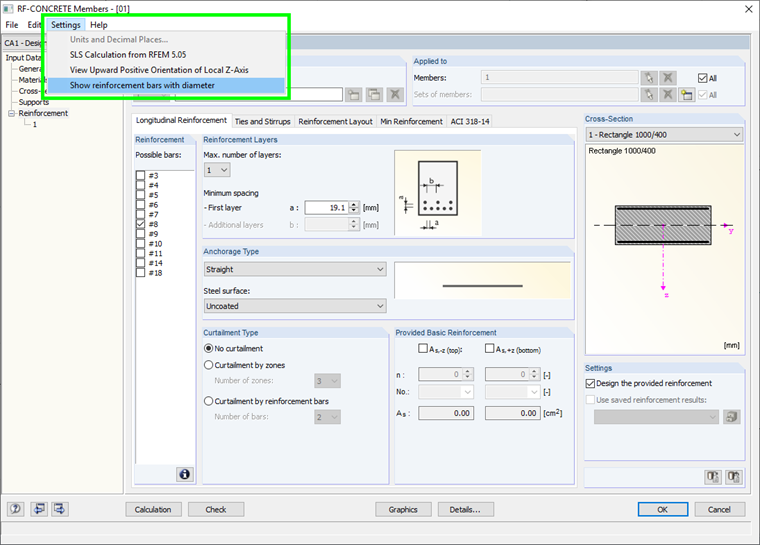

You will find the corresponding option under "Settings" of the add-on module (see Image 01).
Question
How can I change the size of reinforcement bars from the American code (#3,#4, and so on) to millimeters in RF‑CONCRETE Members while using ACI?
