In RF-CONCRETE Members, I receive an error message stating that the steel cross-section cannot be designed. Why do I get such a message?

Answer

Please select only members with a reinforced concrete cross-section in the input dialog box 1.6 for the design. If members from z. For example, if you select Steel, you receive the corresponding error message.

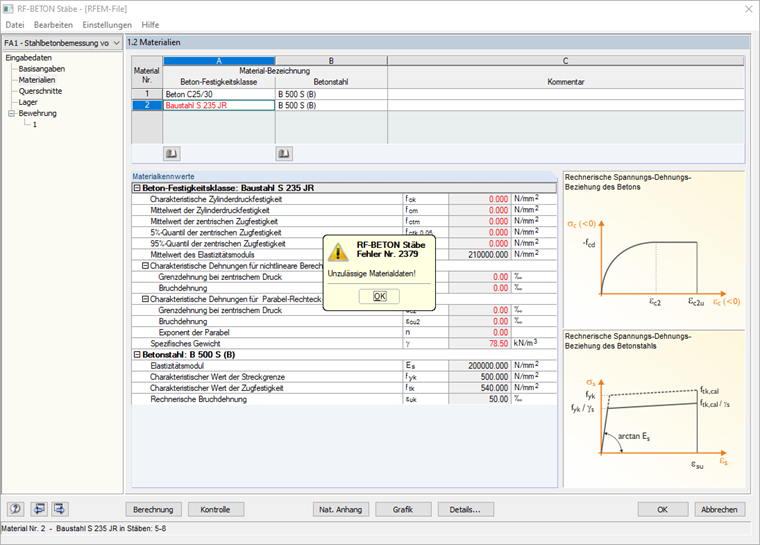

Figure 01 - Message No. 2379 - Invalid Material Data!

If you select "All members", the members with a steel cross-section are automatically removed from the design.

Keywords

Reinforced concrete Cross-section Material Steel Error 2379 Invalid
