According to which approaches is the lap length design performed in RF-/FOUNDATION Pro? And can I deactivate this check?

Answer

The check of the lap length is performed according to DIN EN 1992-1-1 clause 8.7.3 or clause 10.9.6.3 for block and bucket foundations with profiled bucket surface.

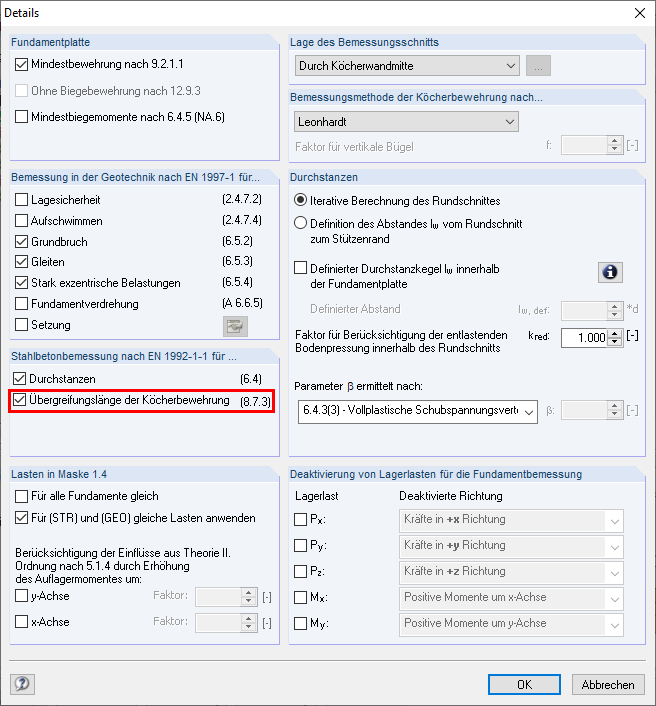

The design can be optionally deactivated using the [Details ...] button.


You can find an example of the calculation of the lap length for the bucket foundation in the RF-/FOUNDATION Pro manual, which you can download using the following link or open with the module started by pressing the [F1] key.
