Is it possible to use high-strength reinforcement or high-strength reinforcing steel in RF-CONCRETE Modules?

Answer

Yes, for the nonlinear calculation in RF-CONCRETE Members, it is possible to select the high-strength steel SAS 670 for the design. In this way, you can perform stability analysis for columns, among other things.

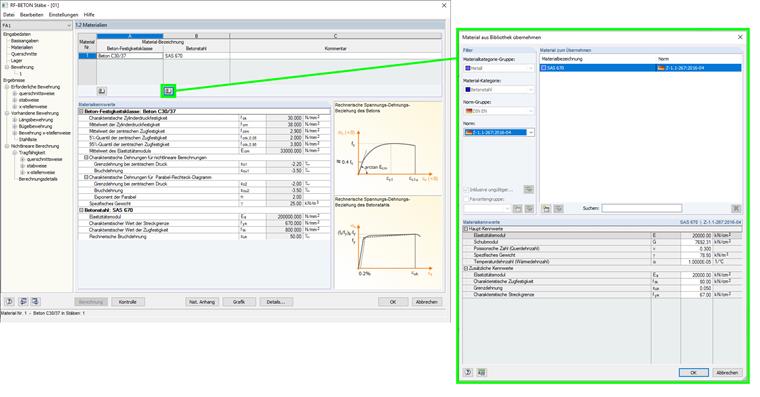

The steel can be selected in the Materials section of the module (see Figure 01). Since DIN EN 1992-1-1 only allows fyk = 500 N/mm² by default, this limit must be adjusted when using SAS 670.

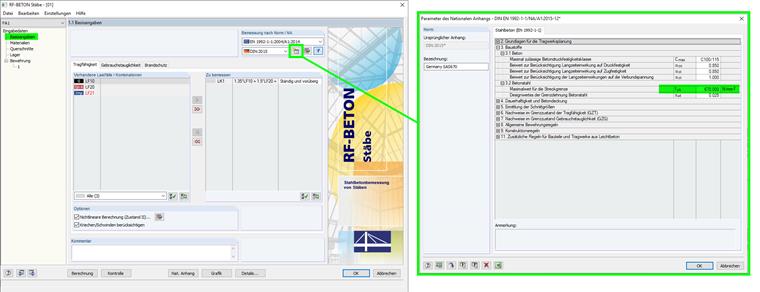

In the general data, you can create a user-defined National Annex where the maximum value of yield strength is increased to fyk ≥ 670 N/mm² in Point 3.2 (see Figure 02).

Keywords

High-strength reinforcement SAS SAS 670 Annahütte Stability analysis Column
