Why are there the intermediate results for some members exactly at the member end node in the result table of member internal forces?

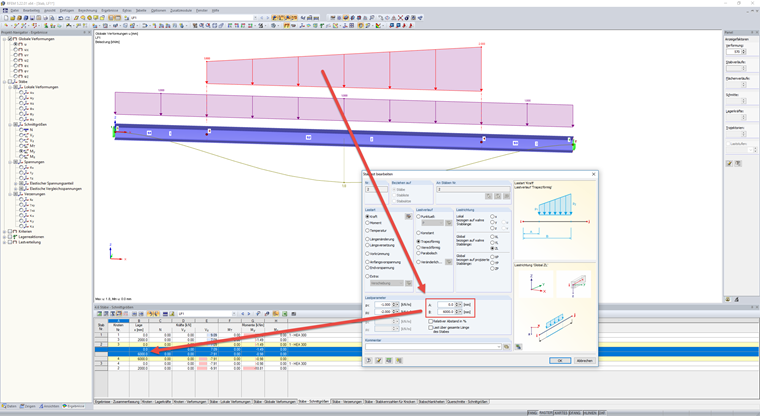

The result display of intermediate values is generally linked to the member division property. Also, member loads defined in sections in RFEM generate further intermediate results. For example, if a member load defined in sections is distributed from the member start to the member end, the intermediate results are obtained at the member end nodes.


Intermediate node Intermediate result Internal force Member division
