FAQ 004343 | Why are the intermediate results for some members exactly at the member end ...

Question:

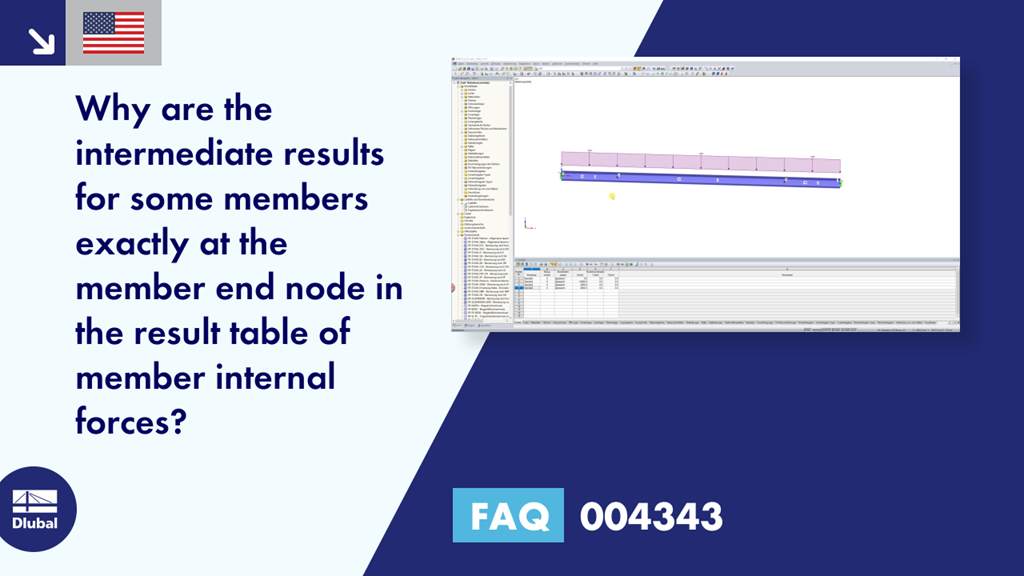

Why are the intermediate results for some members exactly at the member end node in the result table of member internal forces?

Answer:
The result display of intermediate values is generally linked to the member division property. Also, member loads defined in sections in RFEM generate further intermediate results. For example, if a member load defined in sections is distributed from the member start to the member end, the intermediate results are obtained at the member end nodes.
