In the case of member loads, the loads are entered in Table "3.2 Member Loads." I can view or change the values.

In my model, I have applied generated loads. Should the member loads not be also visible in Table "3.15 Generated Loads"?

Answer

The load values of generated loads are recorded in Table "3.15 Generated Loads." It is not possible to make any changes there.

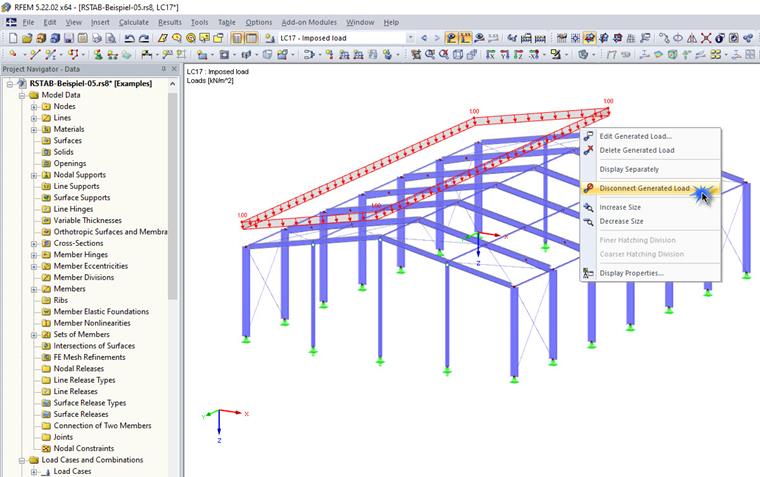

If you want to change the loads, you have to disconnect the generated loads. You can do this quickly by using the shortcut menu of the load (see the figure).
