Answer:

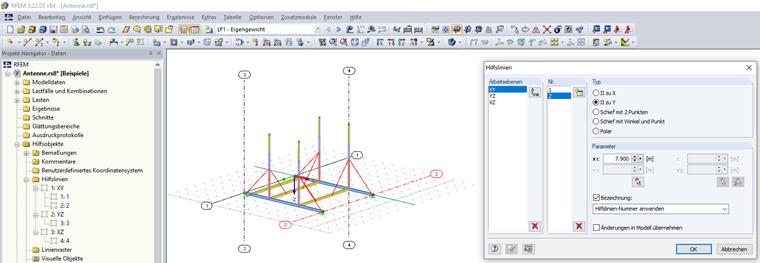

Guidelines are always created in the current work plane. The work plane can be parallel to one of the following global planes: XY, YZ, XZ.
Question
Why are all guidelines stored under the "1: XY" entry in Project Navigator - Data?
