Question:
Why are all guidelines stored under the "1: XY" entry in Project Navigator - Data?
Answer:
Guidelines are always created in the current work plane. The work plane can be aligned parallel to one of the following global planes: XY, YZ, XZ.

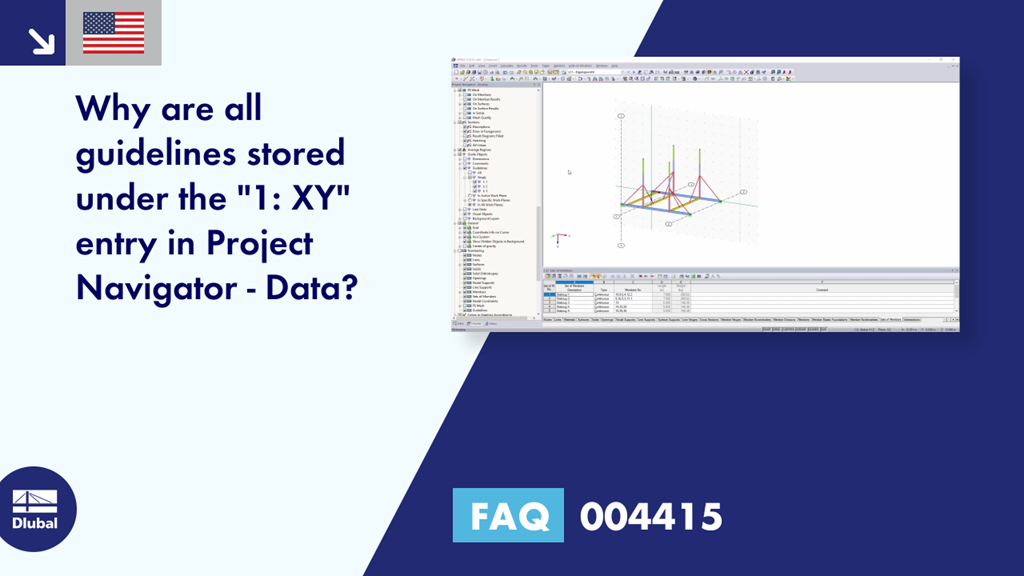

[EN] FAQ 004415 | Why are all guidelines stored under the "1: XY" entry in Project Navigator...
