Answer:

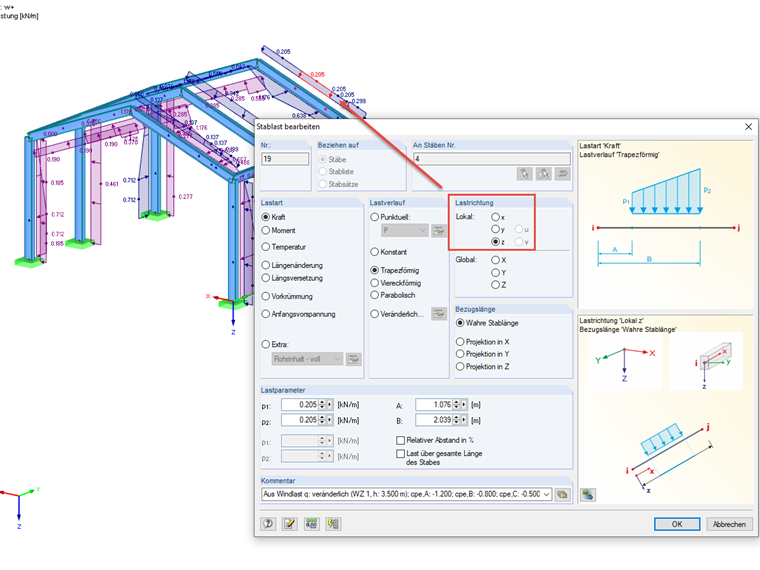

For the load direction from a wind load, you should select "Local z". This assumption is based on the fact that the wind load is usually shown perpendicular to the load plane in all standards.
Question
Which load direction should I select for members and surfaces in the case of a wind load?
