How can I display the results from RF‑PUNCH Pro exactly in the critical perimeter with a result value?

Answer

It is possible to use the "isolines" instead of displaying the results with "isobands" in the graphic.

First, switch to the "Isolines" display.

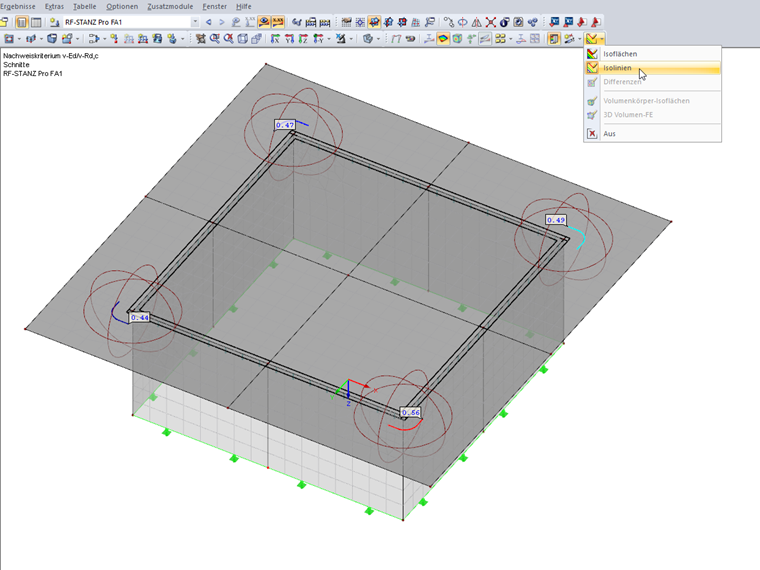

Figure 01 - Selection of "Isolines"

Then, you can additionally set in the Display navigator that the "Result Values Defined Automatically" should be displayed for the isolines.

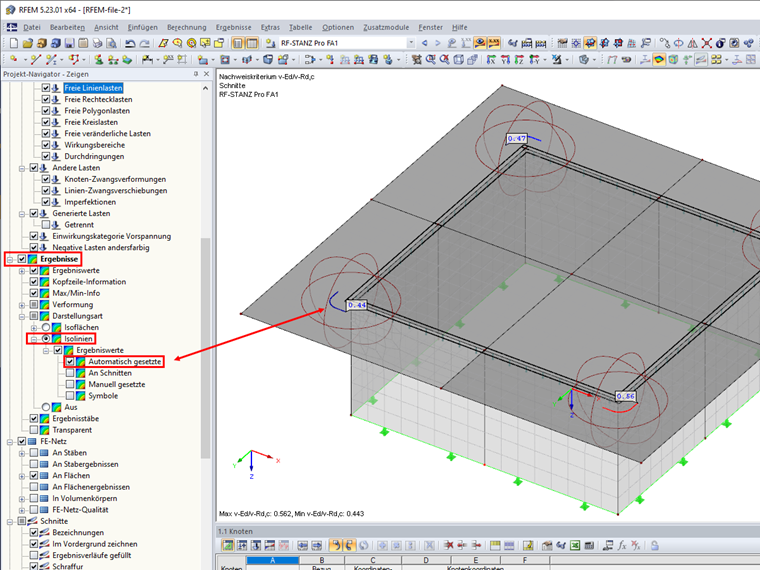

Figure 02 - Settings in Display Navigator for Activating "Result Values Defined Automatically"
