Is there an interface between LayPLAN by Layher and RSTAB/RFEM?
Answer

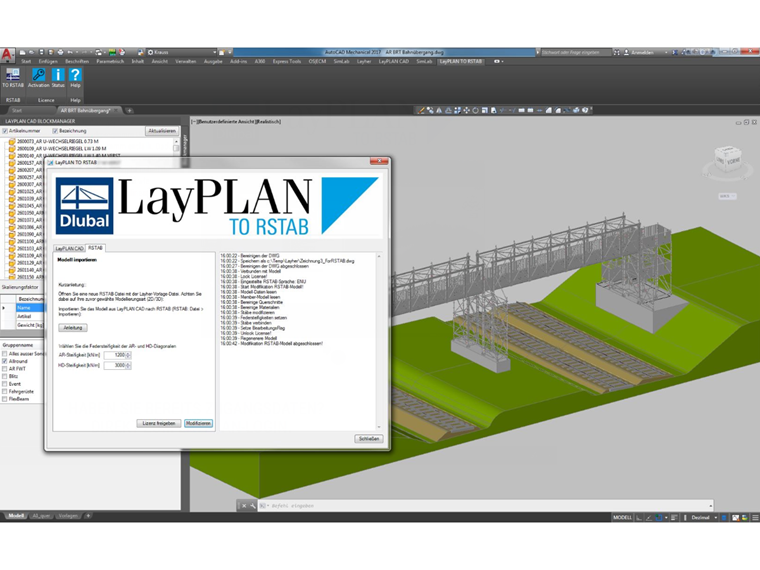

You can easily transfer scaffolding structures to RSTAB. The "LayPLAN TO RSTAB" interface transfers geometry data as well as statically relevant information, such as cross-section and material data, member types, eccentricities, and nonlinear joint definitions according to the approval.
To operate this interface, an active license of RS‑COM to RSTAB is required.

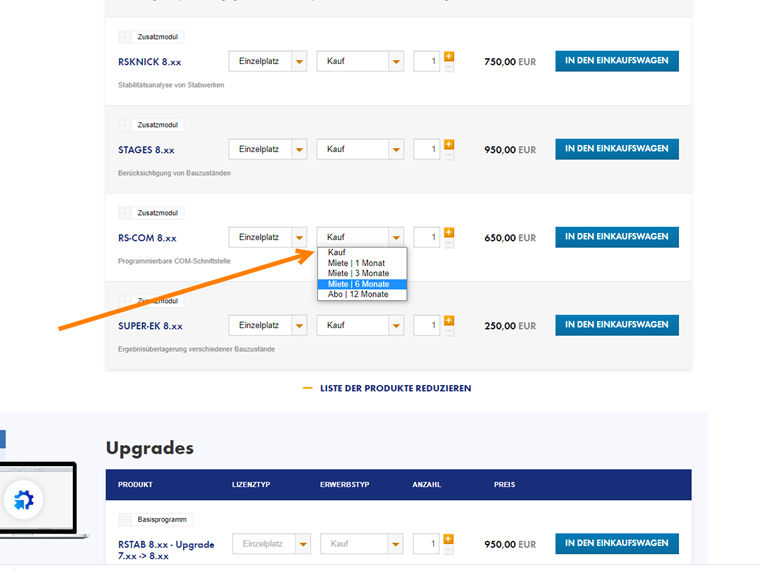

A perpetual license or a rental license is available for RS‑COM.
Keywords
LayPLAN RSTAB Interface Scaffolding
