Is it possible to combine several load cases into one load case?

Answer

You can combine several load cases into one load case by right-clicking an existing load case and using the "Add Load Case ..." option.

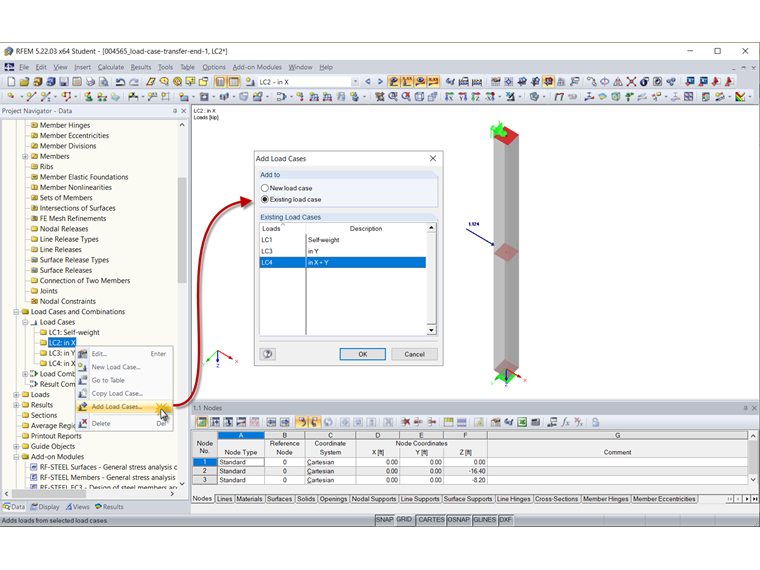

Figure 01 - Right-click on existing load case and select "Add Load Cases"

In the dialog box that appears, you can select the load case in which this load is to be added.

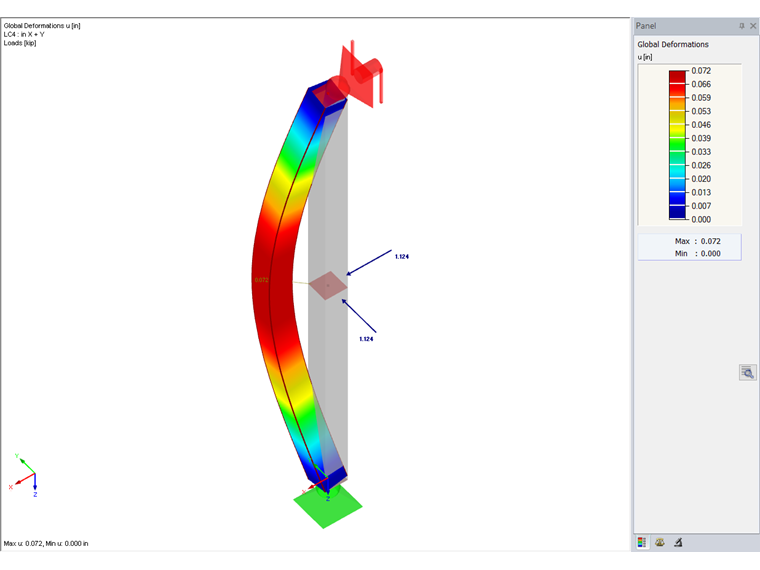

You can use this procedure to combine loads from several load cases in one load case.
