Answer:

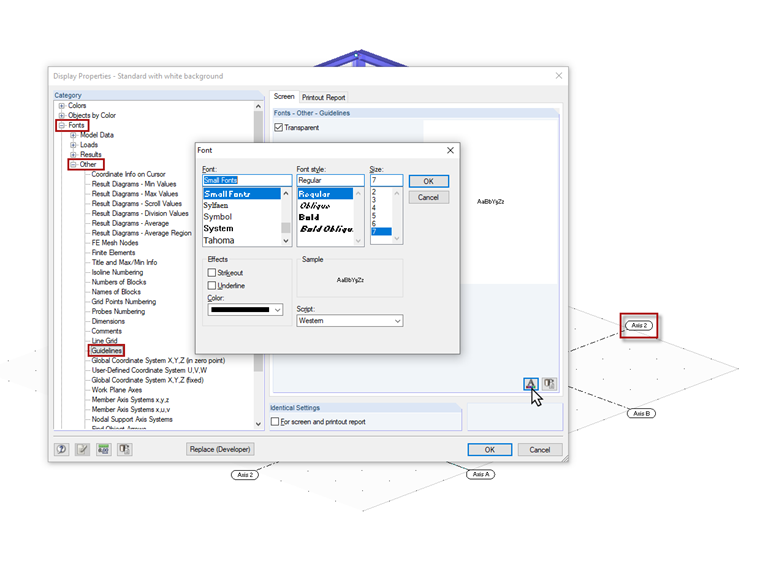

You can find this setting in Display Properties under the "Font", "Other", and "Guidelines" categories.
Question
How can I customize the font size and font style of guidelines and their descriptions?
