RFEM 5 | Modeling Perpendicular Line from Node to Next Line

How can I model a line perpendicular to the next line from a particular node?

Answer:

The "Rotate" and "Extend Line" functions are suitable for this purpose:

  • Rotate a line adjacent to the corresponding node by 90 degrees (shortcut menu: Rotate).
  • Extend a new line from the member start/end using the "Extend Line" function (shortcut menu) up to the next line.

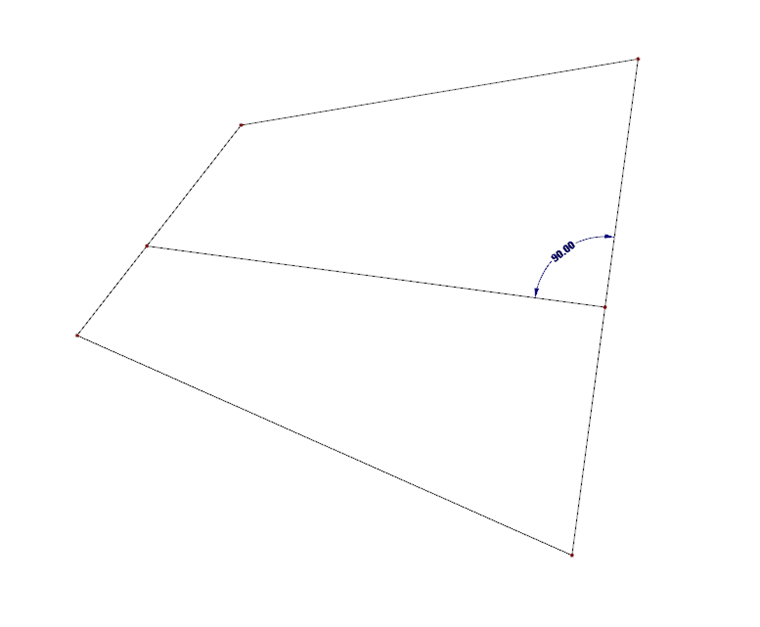

    90-Degree Rotation and Extension
    90-Degree Rotation and Extension
Author

Frank is responsible for quality assurance in the RFEM program and also assists with customer support. He oversees technical design processes and contributes to the stability and reliability of the software.
