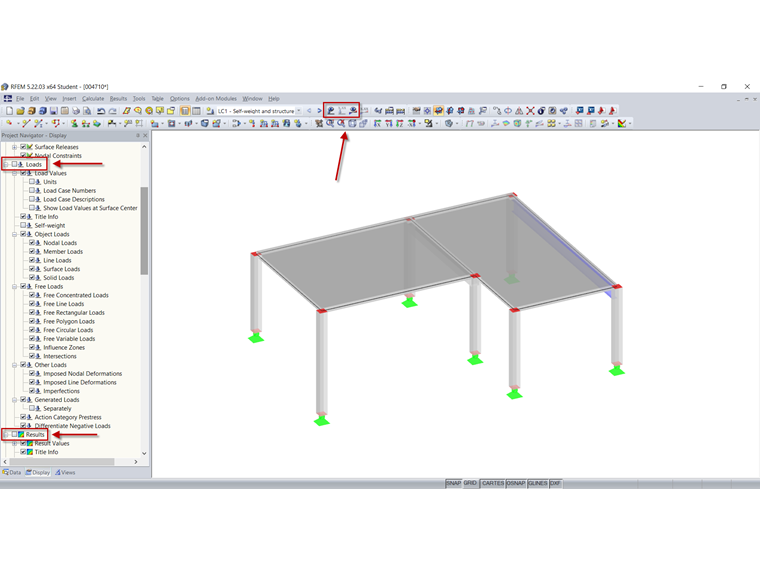

In order to print the image without loads and without reference to a load case, it is necessary to hide all results and loads.
Only when there is no text at all in the title and max/min info will the image be printed into the printout report without any reference.
